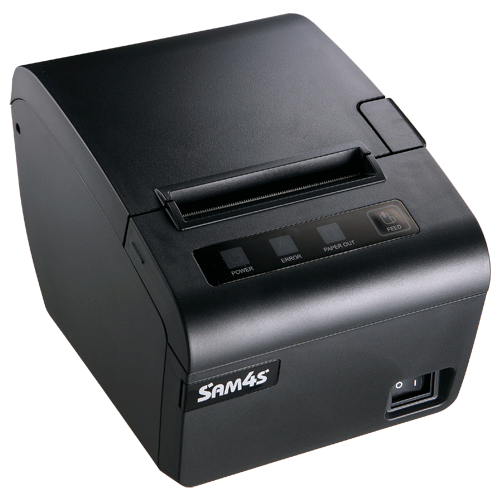

ELLIX-30 Thermal POS Printer

The SAM4S ELLIX-30 is a fast low cost Thermal Docket Printer that is perfect for many retail and hospitality POS applications.?It has standard USB interface with a choice of RS232 or Ethernet interface.

Main Features:

  • Fast (up to 180 mm/sec) Direct Thermal Printing
  • Drop in Paper loading
  • Two Colour Printing (with Special Paper)
  • Barcode Printing, including QR code
  • Compatibility (ESC/POS)
  • NV Memory for Bit map Data Storage
  • Page mode printing
  • Auto cutter
  • Firmware downloadable with USB Stick, for easy in the field upgrades
  • Ethernet, USB and RS232
  • Flexible paper widths.?(80mm & 58mm)
  • External Power Supply
  • Available in Ivory/Black or Black



Ellix30-brochure

Printing Method

Line Thermal Dot Printing

Dot Pitch

180 dpi

Printing Speed (Max.)

Mono Printing on 80mm Paper approx. up to 180 mm/Sec (43 Lines/sec)

Mono Printing on 57mm Paper approx. up to 150 mm/Sec (36 Lines/sec)

Colour Printing approx. up to 100 mm/Sec (24 Lines/sec)

Printing width

80 mm Paper 72mm

57 mm Paper 48mm (max. 54mm)

Font Size

Font A: 12 x 24

Font B: 9 x 17

Number of Columns

80 mm Paper: Font A - 42 Columns, Font B - 56 Columns

58 mm Paper: Font A - 30 Columns, Font B - 40 Columns

Character Size

Font A: 1.69 x 3.38mm (12 x 24 dots)

Font B: 1.26 x 2.39mm (9 x 17 dots)

Character Table

Alphanumeric Character (Font A & B)

Bar-code Type

UPC-A/E, EAN-13/8, ITF, Code 39/93/128, Codabar.

Paper feed method

Friction

Paper Type

Thermal Paper Roll

Paper Width

80 ± 0.5mm or 58 ± 0.5mm

Paper Roll Diameter

Max ? 83.0mm

Paper Supply Method

Easy Paper Loading, Drop in and Print

Emulation

ESC/POS & Star

Print Buffer

64K bytes

NV Memory

8 Mbytes

Sensors

Paper End & cover open Sensor.

Drawer Ports

1 ports Controls 2 drawers with special cable. (24V)

Interface

Ethernet, USB , RS232

Driver available

Windows 2000/NT/XP/2003 server, OPOS

Software Utilities

Firmware/NV Image download

Power Supply (Adapter)

Input: AC90 ~264V

Output: DC 24V,2.5A

Operating Environment

5°~45°C, 30~80% Relative Humidity

Storage Environment

-10°~50°C, 10~90% Relative Humidity

Weight

3 Kg

External Dimensions

(W x D x H)

144 x 195 x 137 mm

Reliability

Head

100,000,000 Pulses, 150Km

Mechanism

70,000,000 Lines

Auto Cutter

1,500,000 cuts

EMC/Safety Standards

C-Tick, FCC Class A, TUV-GS, CE, CB, cTUVus
