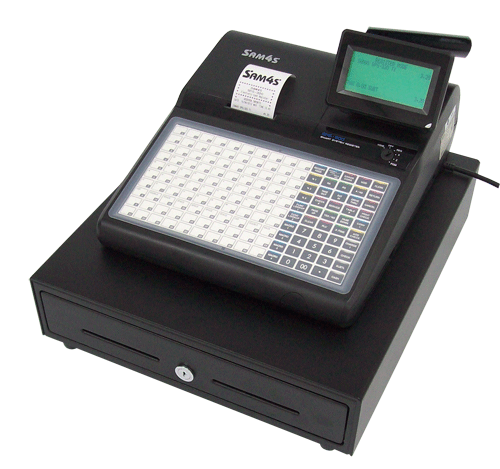

SPS-320 Single station System Cash Register



The SPS-320 is a solution for a wide range of Hospitality environments. It has a multiline line LCD Alpha/Numeric display with 7 different colours backlight and single drop in paper loading thermal printer and is well suited for the small to medium convenience store, fruit markets, restaurants and various retail operations.

Main Features:

  • High featured 1 Station Cash Register
  • High Speed (23 LPS) 1 Station Direct Thermal Printer with Auto Cutter.
  • Drop in Paper loading
  • 8 Line 32 Character LCD Operator Display
  • Link up to 16 ECR's via IRC
  • 3 x RS232 ports (2 X DB9 Male, 1 x RJ-45 Socket) for Scanner, Scale, PC communication, Kitchen/Bar Printer or Journal Surveillance output, the 4th port is USB Virtual COM port for PC Communication only
  • Up to 20000 PLU's
  • 14 Digit PLU/Barcode Number Capable
  • Check Tracking for up to 200 Accounts for Table Management
  • 15 Window Lookup Functions
  • Up to 5 Sales Price per PLU
  • Eat In/Takeaway/Drive Thru Function
  • Graphic Logo Print
  • Also available with raised keyboard
  • Electronic Journal
SPS320-Brochure

Printing Method

1 Station Direct Thermal Type with Auto Cutter

Printing Speed (Max.)

up to 23 LPS

Paper Width

57.5 ± 0.5mm

Paper Roll Diameter

Max ? 83.0mm

Paper Supply Method

Easy Paper Loading, Drop in and Print

Keyboard

150 Key Flat Keyboard

Display

Operator:

LCD 8 Lines of 32 Characters

Customer

10 Digit VFD

Memory

ROM: 16 Mbits Flash ROM

RAM: 16 Mbits SRAM

Memory Protection

90 Days

Interface

3 x RS232

COM1 : DB9 Male Serial

COM2 : DB9 Male Serial

COM3 : RJ45 Socket Serial

1 x USB

COM4 : USB Virtual COM Serial (RJ45 Socket Serial Optional)

IRC

Batch mode IRC (up to 100 Meter)

Drawer

4B/8C

Memory Configuration

("Max." depends on

Memory Sharing

choices)

up to 20000 PLU's

Max. 99 Clerks

Max. 99 Groups

Max. 200 Checks (Accounts)

Max. 230 Lines Record Per Account

Soft (Restaurant Style) or Hard (Service Station Style) Check (Account) System

Max. 5 Price Levels

Max. 99 Mix & Match

Max. 50000 Electronic Journal

OS Functions

32 Character per Line Logo Description

(6 Lines Heading + 6 Lines Footing)

18 Character Description

14 Digit PLU Number

5 Modifier Levels

20 Macro keys (with Manager Control Option)

10 Tender Keys

Charge Posting Accounts

Max. 4 Currency Conversion

Inventory Item

Condiment Item

Table Management or Clerk Interrupt

Training Mode

9 Digit Clerk Password

Graphic Logo on the Receipt Heading and Footing

Maximum 230 Line Record per Transaction

Software Utilities

Programming Utility Software, ASCII converter for PC comm's

Virtual Com Port Driver for Windows (32/64-bit)

Weight

12 Kg

External Dimensions

(W x D x H)

400 x 455 x 305 mm

EMC/Safety Standards

CE, FCC, UL, TUV, GS, C-tick

Power Supply

AC 230V± 10%
